Classification--It is a nine pins tube.oxide coated cathode of indirect heated.
Application--It intended for use a NF voltage amplifier or Phase inuerter. It is Low noise tube.

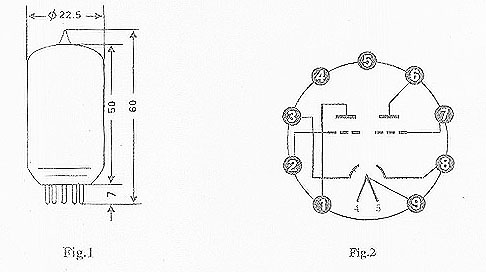

Dimensions--Dimensions, outline diagrams of the tube and bases and the arrangement of electrode commections to the base terminals are shown in Figures 1 and 2 .
Nominal operating conditions and parameters
Heater voltage”””””””””””””””””””””””12.6 V*
Heater current””””””””””””””””””””..........0.15 A
Plate voltage””””””””””””””””””””””””250 V
Grid voltage””””””””””””””””””””””””.£2 V
Plate resistance””””””””””””””””””””””62.5 kohms
Plate current””””””””””””””””””””””””1.2 mA
Amplification factor””””””””””””””””””””””100
Characteristics-Average characteristics

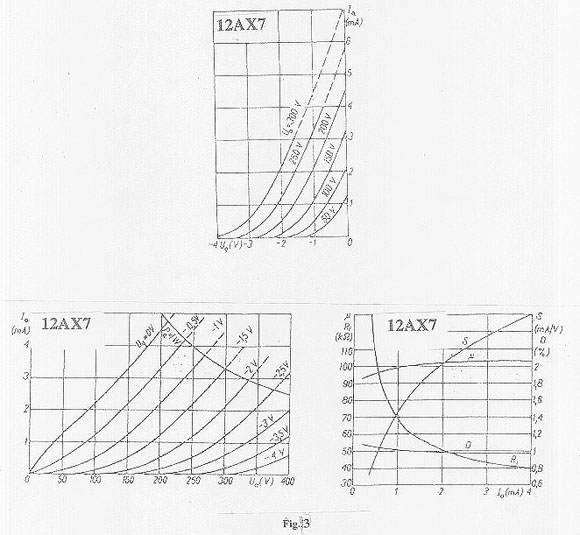

Figure 3. shown typical curves of plate currents as a function of grid voltage for several values of plate voltages.
Fig.3

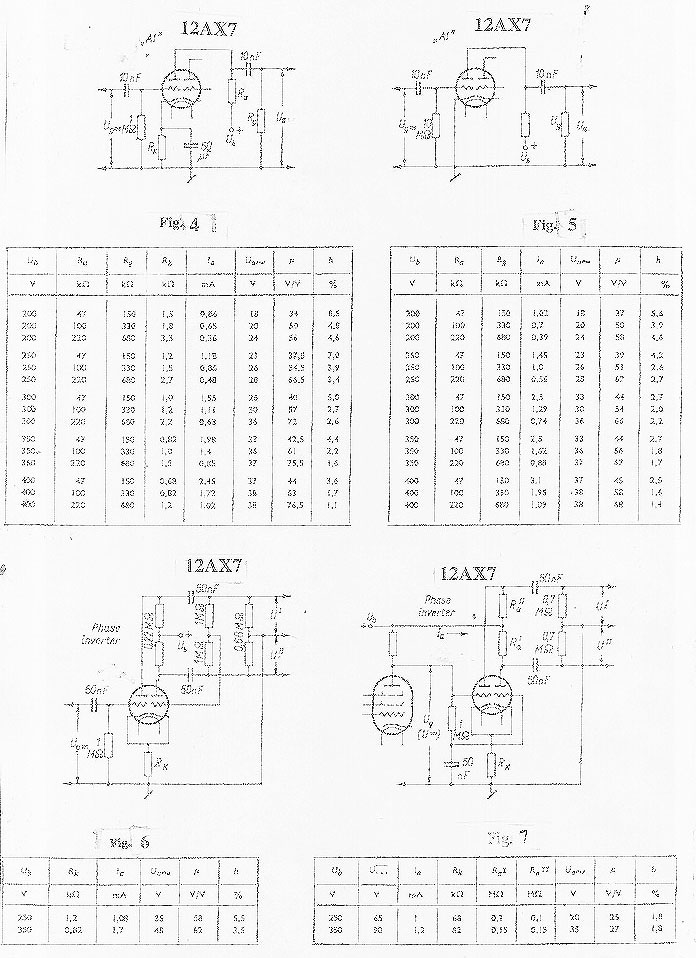

Limiting Operation Conditions for Safe Nor-nor simultaneous ratings
Maximum plate voltage”””””””””””””””””” 330 V
Maximum Grid voltage””””””””””””””””””-- 50 V
Maximum Grid voltage””””””””””””””””””....0 V
Maximum Power of plate”””””””””””””””””1.2 W
|
